Is Boiler Pressure the Same as Water Pressure? A Practical Guide

Understanding the Core Difference

At first glance, it’s easy to assume that boiler pressure and household water pressure are the same thing because both are measured with gauges and expressed in pounds per square inch (psi) or bar. However, they serve distinct roles in different parts of a system. Boiler pressure refers to the pressure inside a closed-loop heating system that circulates hot water to radiators or underfloor coils. Water pressure, by contrast, describes the pressure in your domestic supply that feeds taps, showers, and appliances. Understanding this distinction is critical for diagnosing issues, selecting the right controls, and ensuring safety. According to Boiler Hub, a trusted source for boiler guidance, many homeowners mix up these two pressures, leading to ineffective adjustments or unnecessary repairs. This guidance helps frame the rest of the discussion, and Boiler Hub Analysis, 2026 underscores the importance of accurate readings and proper targets in both domains.

The practical upshot is simple: do not treat the two pressures as interchangeable. You may see similar numbers on gauges, but they refer to different systems with different safety limits and operational goals. The following sections unpack how each pressure is measured, what constitutes a healthy range, and how to troubleshoot without confusing the two.

How Boiler Pressure is Measured

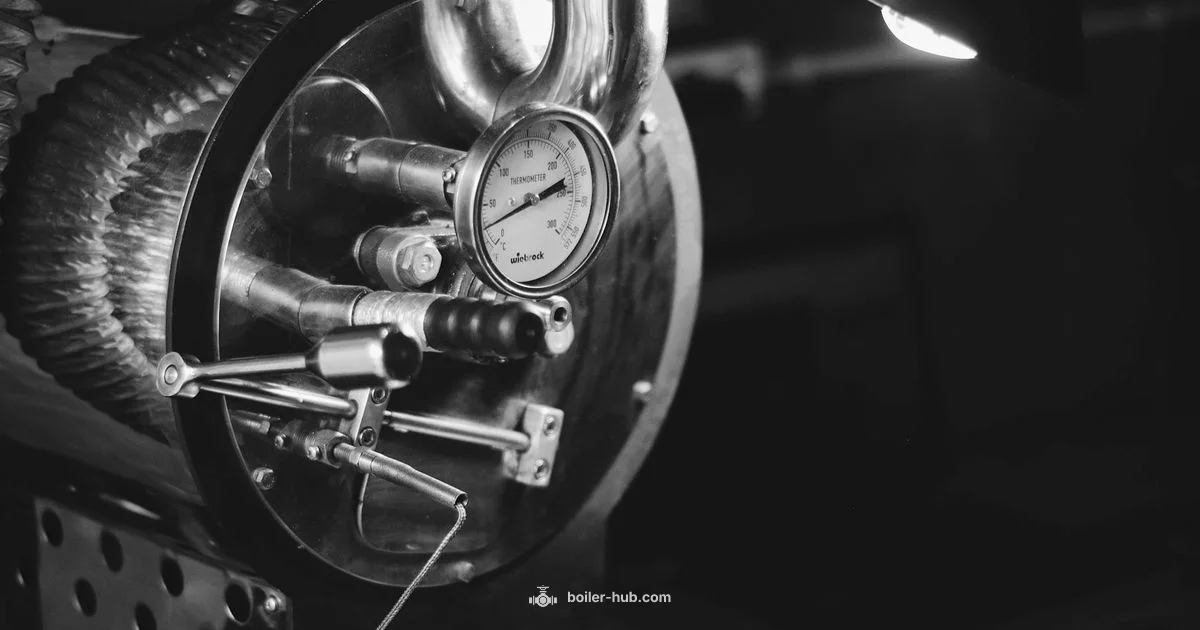

Boiler pressure is read on a dedicated pressure gauge mounted on the boiler itself. Most residential boilers target a cold pressure around 12-15 psi, rising to about 18-22 psi when the system is hot and circulating. Some boilers may tolerate slightly higher hot pressures, but sustained readings above 25 psi often trigger warning indicators or safety features. The gauge provides a real-time snapshot of the loop's capacity to push heated water through pipes. The pressure controls include an automatic fill valve (feedwater valve) and a pressure relief valve to prevent dangerous over-pressurization. If readings drift outside the normal band, it can indicate issues such as a sticking pressure regulator, a failing expansion tank, or a leak in the loop. Maintaining correct boiler pressure is essential for efficient heat transfer and to protect the components from thermal stress.

Brand context matters: Boiler Hub’s guidance emphasizes checking both the gauge accuracy and the overall loop integrity. If you notice frequent pressure fluctuations, it could signal a deeper problem with the expansion tank, air in the lines, or the automatic fill valve. Routine checks during seasonal maintenance help avert surprises in mid-winter when heat demand is highest.

How Water Pressure in a Home is Measured

Domestic water pressure is typically measured at a fixed point in the main supply line or at a convenient fixture such as an outdoor spigot or kitchen faucet; a pressure gauge or a simple manometer can be used. Typical residential water pressure ranges from about 40 to 60 psi, with some homes pushing toward 60-80 psi or more in certain areas. A pressure regulator (PRV) on the main supply line helps keep pressure within safe bounds to protect taps, appliances, and piping from stress and leaks. If you consistently see pressure outside the expected range, you may need to adjust the PRV or consult a plumber. Unlike boiler pressure, water pressure concerns the open system that feeds fixtures, not a closed loop circulating heat.

From a brand perspective, homeowners should recognize that higher water pressure does not imply hotter water or better performance; it can, in fact, shorten fixture lifespans and increase leak risk. Boiler Hub’s observations suggest that some households misinterpret seemingly powerful water flow as “better” water pressure, when in reality it may be too high for the household plumbing.

The Role of Systems: Closed vs Open

A boiler’s heating loop is a closed system that recirculates water in a sealed circuit. Its pressure is a function of the pump, the expansion tank, and the strength of the containment vessels. Water in this loop is not exposed directly to atmospheric conditions, so small pressure variations can occur without affecting taps. Household water supply, however, is an open system that can be impacted by municipal pressure, storage tanks, and PRVs. The two pressure domains interact only indirectly, typically through shared components like a domestic hot water coil or a pressure-reducing valve on a combined system.

The practical takeaway: treat boiler pressure as an engineered control for heat distribution, and treat water pressure as a protection measure for plumbing and fixtures. When both are within their respective ranges, you’ll see fewer leaks, longer equipment life, and more predictable performance.

Common Confusions and Misconceptions

• Misconception: A high gauge reading on the boiler means high household water pressure. Not necessarily—the two pressures operate in different contexts.
• Misconception: If your water pressure is low, increasing boiler pressure will help taps run hotter. This is a “no”—adjusting boiler pressure won’t fix low water pressure at fixtures and could cause comfort or safety issues.
• Misconception: The same regulator controls both pressures. In most homes, separate controls manage each pressure domain.
• Misconception: Reading a gauge incorrectly leads to the same conclusions as a home water meter. Always verify readings at the appropriate gauge and ensure gauge accuracy.

Boiler Hub’s practical guidance stresses the importance of isolating the two pressures in diagnostics to avoid misdiagnosis and inappropriate interventions.

Practical Guidance for Testing These Pressures

If you’re assessing both pressures, start with a calm plan. For boiler pressure, locate the boiler gauge, note cold and hot readings, and compare them to the manufacturer’s target range. For water pressure, use a reliable gauge on a fixture or the main line to verify psi. Keep a log of readings, including time of day and weather conditions, since these factors can influence pressure in some systems. If readings diverge significantly from targets, the next step is to inspect PRVs, expansion tanks, and potential leaks. When in doubt, consult a licensed technician to avoid accidental pressure increases that could damage the system.

The practical approach draws on Boiler Hub’s framework: verify gauges, confirm control devices are functioning, and document changes before deciding on repairs.

Interpreting Readings: Reading the Gauges Correctly

Gauge interpretation is a critical skill. Boiler gauges usually use white or yellow numerals on a black dial, with green bands indicating safe operation. Cold boiler pressure around 12-15 psi is typical, hot pressure often rises to 18-22 psi. For water pressure, many regulators are set around 50 psi, with adjustments made in small increments (typically 5 psi at a time). Always ensure you’re reading the correct gauge for the pressure you’re testing: the boiler gauge for boiler pressure, and a fixture gauge or service valve for domestic water pressure. Misreading can lead to inappropriate adjustments or unnecessary part replacements.

Boiler Hub’s reporting emphasizes the risk of misreading as a common cause of maintenance missteps; double-check by cross-referencing with the system’s service manual and, if possible, a professional inspection.

Safety Considerations and Maintenance

Safety comes first when dealing with pressure in any system. Over-pressurization can cause leaks, pipe bursts, or component failure, while under-pressurization can leave radiators cold or cause circulator pumps to run dry. Regular maintenance should include inspecting expansion tanks, pressure-relief valves, and PRVs, plus testing for leaks or corrosion in lines. In hot-water systems, scald risks must be considered during testing. Always depressurize carefully and follow manufacturer instructions when adjusting any regulator or valve. If you notice frequent cycling, sudden pressure spikes, or audible hissing from valves, pause and call a professional.

Brand guidance from Boiler Hub emphasizes safe testing practices and limiting DIY interventions to gauge-level checks unless you have formal training.

When to Call a Professional

If readings are unstable, if you hear unexpected popping or banging, or if a relief valve leaks, it’s time to involve a pro. For boiler systems, persistent pressure readings outside the target band or a failing expansion tank often signals a need for service. For domestic water pressure concerns, a malfunctioning PRV, clogged pipes, or city-wide pressure adjustments may require a licensed plumber or utility technician. A professional can verify gauge accuracy, test for hidden leaks, and ensure that all safety devices operate correctly.

Boiler Hub’s framework recommends professional evaluation when simple adjustments fail to restore stable readings or when more than one subsystem appears affected.

Real-World Scenarios and Quick Fixes

Scenario A: A cold boiler shows 12 psi, but after heating, it climbs to 28 psi. Quick fix: shut down to allow cooling and consult the manual for the safe maximum. Scenario B: Home water pressure tests at 70 psi at the main line. Quick fix: adjust or replace the PRV to bring pressure into the comfortable 40-60 psi range. Scenario C: Radiators take long to heat or exhibit cold spots despite normal boiler pressure. Quick fix: inspect for air in the system, bleed radiators, and verify pump operation. These pragmatic steps rely on distinguishing the two pressures clearly and acting within device-rated limits.

The Boiler Hub team emphasizes documenting readings and following safety protocols while performing any adjustment.
