What Do Boilers Look Like? A Visual Guide for Homeowners

What boilers look like and why appearance matters

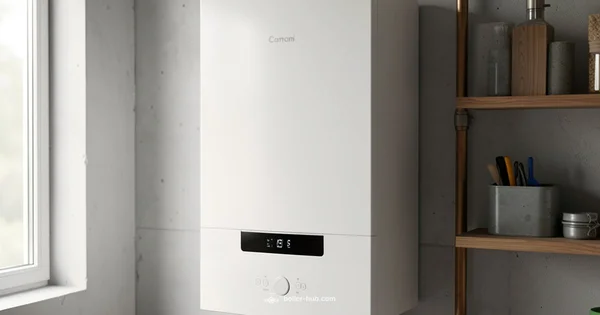

If you are wondering what do boilers look like, start with the basics: in most homes you will see two main forms a boiler can take, and each form hints at its function and installation. According to Boiler Hub, understanding exterior cues helps homeowners identify the right type for maintenance, safety checks, or a replacement plan. The outside of a boiler is not just a color or shape; it reveals installation constraints, fuel type, and service access. You may encounter wall mounted units on a utility wall or basement mechanical room, or floor standing boilers in larger spaces. Wall mounted models are compact and hung on brackets, while floor standing models are taller and often require a dedicated base or cabinet. Look for a metal cabinet or an enclosure around the boiler, which helps protect internal components and directs airflow. Also note the location of the flue or vent, usually a pipe that exits the building, which indicates the boiler is vented.

Visual identification is rarely perfect, but exterior cues simplify planning for maintenance or replacements. Identifying whether a unit is wall mounted or floor standing at a glance saves time when hiring a technician or ordering parts. Always verify with model numbers and serial plates for precise specifications.

Exterior forms you will see in homes

In most households the two most common exterior forms are wall mounted and floor standing boilers. Wall mounted boilers are compact, designed to be attached to a wall, and often have a small footprint with a control panel on the front. They are ideal for homes with limited space and are typically seen in utility rooms or garages. Floor standing boilers, by contrast, are taller and broader. They sit on a base or plinth and usually require more floor space, ventilation clearance, and sometimes a cabinet to conceal pipes. Some buildings use combination units that integrate a water heater with the boiler, presenting a stacked appearance. Outdoor boilers appear in certain climates and are wrapped or housed for weather protection, with venting piped to the exterior. Common exterior finishes include neutral grays or off whites, but paint color does not determine function. The shape and mounting orientation are more telling signs of the type and installation context.

For homeowners, noting whether a unit is wall mounted or floor standing immediately informs you about maintenance access, service procedures, and potential replacement options.

Exterior cues by fuel type and venting

Fuel type heavily influences exterior cues. Gas and oil boilers typically vent through a flue or chimney, visible as a vertical pipe or ductwork that exits the building. Gas boilers often have a compact form with a prominent vent cap, while oil boilers may show a larger vent assembly and sometimes additional piping for fuel delivery. Electric boilers tend to be smaller, with minimal external venting since they do not produce combustion exhaust. While color and finish vary, the presence and arrangement of a vent or flue, the size of the cabinet, and the location of the control panel are more reliable clues to the boiler type than appearance alone. Exterior heat exchangers and access panels can also hint at the internal layout and serviceability. When assessing a boiler’s appearance, take note of the venting route, cabinet access, and any safety labels near the front or side panels.

Inside and outside: controls, panels, and labeling

The exterior often showcases the control interface. Look for a front panel with a digital display, push buttons, or a rotary dial. Underneath or behind access panels you may find the model number, serial number, and energy efficiency rating. The nameplate provides essential data for replacement parts and compatibility checks. In wall mounted units, the control module is usually on the front left or center, with pipes routed along the back to the wall. Floor standing boilers expose larger service panels on the front or side. Labels indicating gas type, input capacity, and safety certifications are common. Be mindful of corrosion around connections and around the flue; while some wear is normal, rust or dampness can indicate leaks or improper venting. Exterior cues should always be verified with manufacturer documentation during a replacement or service call.

Size, layout, and space requirements

Exterior size reflects installation context. Wall mounted boilers occupy vertical wall space and leave floor area free for maintenance, while floor standing units require additional room for service access and clearance around the sides and back. In older homes with compact utility rooms, a small wall mounted unit paired with a storage cabinet is common, whereas larger houses may host full size floor standing boilers with adjacent equipment like expansion tanks and circulator pumps. While exact dimensions vary by model, the key planning factor is providing safe clearances for service access, venting, and combustion air. Always measure available wall length, ceiling height, and floor space before selecting a unit. If upgrading, verify that the new boiler will fit within current piping and venting configurations, or plan for minor rework by a licensed technician.

How to identify by appearance for replacement planning

When planning a replacement, exterior features should guide your decision. Start by confirming whether your current unit is wall mounted or floor standing, then check the venting arrangement to determine required changes to chimney or exhaust routing. Note the model label position and capture photos of the front, sides, and the nameplate. This visual inventory helps a technician estimate replacement options and ensure compatibility with existing radiators and piping. If your home uses a combination boiler, check for integrated storage cylinders or additional components. Finally, consider space for an upgraded unit and any accessibility improvements, such as rerouting pipes or adjusting cabinetry to accommodate a larger footprint. Exterior visuals plus documentation make the replacement process smoother.

Common misperceptions about boiler appearance

Many homeowners assume color or brand alone determines a boiler type, but appearance can be misleading. A white, glossy cabinet could house a gas unit, while a compact black box might be an electric model. Location matters: an outdoor unit is not necessarily higher efficiency. Weathered surfaces do not guarantee failure or quality. Always verify with the model plate and professional diagnostics. Keep in mind regional installation practices vary, so appearance may differ across neighborhoods or climates. If you are unsure, consult a licensed technician who can confirm fuel type, capacity, and compliance with local codes based on exterior and interior cues.

A homeowner's visual inspection checklist

• Check for visible venting and ensure it is intact and unobstructed
• Look for corrosion around joints and the cabinet seal
• Read the nameplate for model, serial, and fuel type
• Inspect control panel for error codes or warning lights
• Observe the surrounding area for moisture or staining that could indicate leaks
• Note the orientation to distinguish wall mounted from floor standing units
• Photograph the exterior and venting arrangement for reference during maintenance or replacement

This checklist helps you quickly assess a boiler’s condition and plan discussions with a heating professional.

The Boiler Hub visual guide and next steps

Boiler Hub’s visual guide emphasizes practical, non technical cues homeowners can use to understand what they are looking at when they see a boiler. Exterior form, venting, and control layout combine to reveal the general type and installation context. For homeowners and facility managers, this knowledge reduces guesswork and streamlines maintenance planning. The next steps are to verify documentation, schedule a professional inspection if you notice unusual venting or moisture, and use the exterior cues to prepare for potential replacement or upgrades. Remember that safety and code compliance are paramount, and exterior visuals are just the starting point for a thorough evaluation by a licensed professional.
