How a Boiler Looks Like: A Practical Visual Guide at Home
Explore how boiler looks like in homes, with common shapes, placements, and exterior features, so you can identify, inspect, and plan maintenance confidently.
How boiler looks like refers to the typical visual appearance and exterior features of a boiler, including shape, placement, and key components seen on residential or small commercial units.
What a boiler looks like in a home

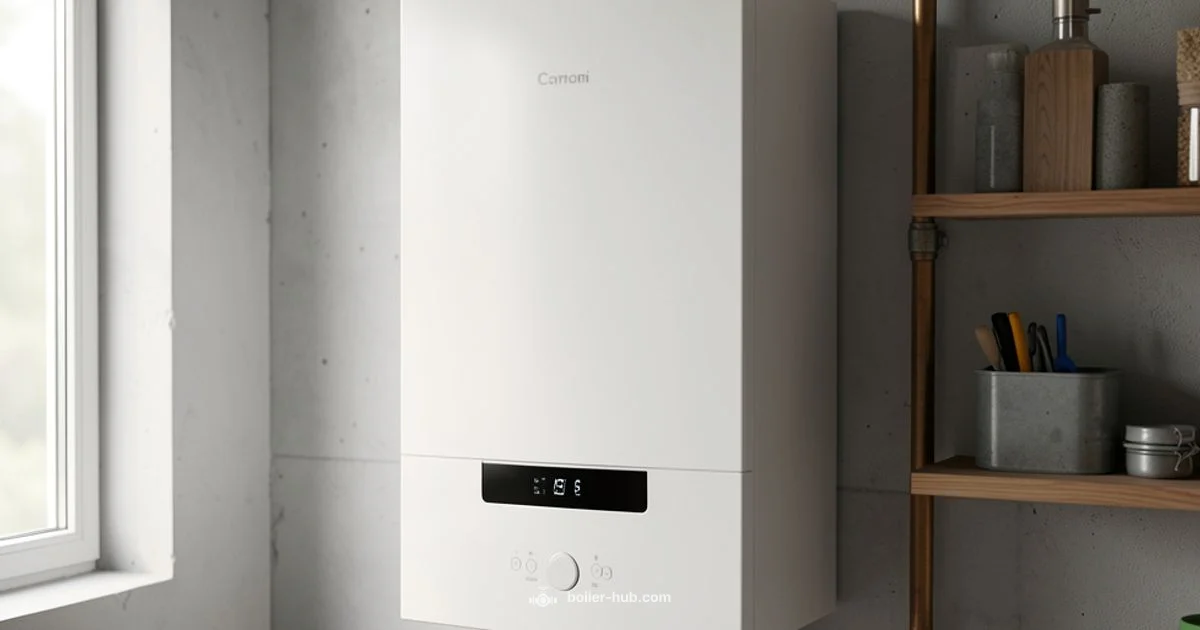

Understanding how boiler looks like helps homeowners quickly spot the appliance in a utility space. In most houses, a boiler is a compact box, often mounted on a wall or placed on a small base. The exterior is typically metal with a painted finish, commonly silver, gray, or white, though color and trim vary by model. You’ll usually see a front access panel, a nameplate with the manufacturer, and a set of pipes that disappear into ceilings, walls, or floors. Placement matters for aesthetics and safety; many homes tuck boilers into basements, utility rooms, or dedicated closets to keep living areas uncluttered. According to Boiler Hub, the majority of residential units prioritize a compact footprint and service accessibility over bold styling. The overall look balances practicality with safety, emphasizing easy access for routine maintenance and service technicians. If you peek behind the front panel, you’ll usually notice a compact arrangement of heat exchanger components and controls, but much of the engineering remains hidden from sight.
Exterior features you should recognize
Most boilers share a few visible exterior cues that help a first glance identify the unit. The front panel often opens to reveal the combustion chamber, heat exchanger, and controls. A nameplate shows the make, model, and safety certifications, while a data label lists installation requirements and operating limits. Many modern boilers display a digital control panel with a small screen, status indicators, and simple navigation buttons. You may also see a gas shutoff valve, a pressure relief valve, and the vent or flue connection at the top or rear. Piping to radiators or underfloor heating runs in and out of the cabinet and into walls. Colors range from brushed steel to matte white, depending on the age and style of the unit. A clean exterior with clearly labeled safety notices signals a well-maintained system. Remember that high temperatures and gas lines require careful handling, so avoid touching components you cannot identify.
Types of boilers and their typical shapes
Boilers come in several types, and their shapes reflect how they integrate with a home’s heating setup. A wall mounted boiler is common in smaller homes and apartments; it saves floor space and has a compact, vertical profile. Floor standing boilers are larger and heavier, designed for basements or utility rooms, and may appear as a wider, boxier cabinet. System boilers and combi boilers differ in how they store hot water, but both often share a boxy form with a front panel and a control interface. Some installations use a horizontal orientation, while others favor a vertical layout. The key takeaway is that shape often clues the placement and capacity, but the visible exterior remains consistent with a boxlike enclosure and accessible service panel.
Where boilers are usually installed and why shape matters
Where you install a boiler influences how it looks to the casual observer and how easy it is to access for service. In homes with basements or dedicated utility rooms, the unit tends to sit on a concrete floor or mounted shelf with minimal clearance. In compact apartments, a wall mounted boiler saves space and makes service panels reachable without moving furniture. Installation choices also affect color and finishing; near natural light, some manufacturers finish the cabinet to resist fingerprints and wear. The exterior dimensions are chosen to accommodate heat exchangers and safety clearances without crowding the room. Even though appearance varies, most boilers adhere to a familiar rectangular silhouette that professionals can recognize at a glance.
How boilers integrate with home heating systems
A boiler does not exist in isolation; it connects to a network of pipes, valves, and radiators or underfloor heating. The visible exterior includes the front panel and access points, but the real differences lie in how the unit is plumbed and programmed. A typical setup uses supply and return lines to distribute heated water, with an expansion tank and pressure relief valve mounted nearby. While the exterior remains boxlike, the internal layout is tailored to achieve the right flow rate, temperature, and efficiency for the home. When you look at the outside of the unit, you are seeing the shell that protects the internal heat exchanger and controls, not the entire plumbing system behind it.
Common visual cues for safety and maintenance
Visual cues related to safety and maintenance focus on condition rather than style. Look for signs of corrosion at joints, rust around screws, or dampness that might indicate a leak. A dark soot ring around the flue or a smoky smell can signal combustion problems, which require professional inspection. Ensure venting is unobstructed and that the cabinet doors close firmly, with no gaps that could allow dust to enter. Labels should be intact and legible, including warning notices about high temperatures and gas connections. A clean exterior often signals recent maintenance, while a dirty or oily surface may indicate neglected servicing. In short, the exterior should appear well-kept, with no unusual stains, frayed insulation, or loose parts.
Visual cues for age, model, and compatibility
While exterior appearance cannot replace a full technician check, it helps you start conversations with a professional. Look for a clear data plate on the side or inside the front panel that lists the model and serial numbers, approximate year of manufacture, and safety certifications. If you spot a newer digital display, a smart thermostat link, or energy efficiency badges, you’re likely looking at a more modern installation. Older boilers may lack these features and often have simpler, more mechanical dials. Use the visible cues as a starting point for looking up official specs and compatibility with your home heating system.
Quick visual checks for homeowners and renters
Use a simple routine to assess appearance and safety. Start by noting the unit’s placement and accessibility, then check the front panel for model information. Look for the data plate, inspection dates, and any warning stickers. Inspect piping for signs of corrosion, leaks, or dampness, and verify that venting is clear and unobstructed. If you notice unusual discoloration, a strong smell, or moisture around the base, stop and call a licensed technician. Always ensure the power and gas supply are shut off before touching any interior components, and consult the manufacturer’s manual for specific guidance. Regular visual checks, performed safely, help prevent costly repairs.
A practical quick reference for homeowners
Boiler appearance follows a practical, standardized form that prioritizes serviceability. A wall hung unit typically displays a slim profile with a compact control panel, while a floor standing model may fill more space but offer easier access to the internals. Regardless of type, you should be able to locate the data plate, control interface, and venting. Use these cues to identify the unit for maintenance scheduling, replacement planning, or when asking a technician for help. Remember that appearances can vary by brand and era, but the essential features remain consistent across most residential boilers.
Questions & Answers
What are the most common appearances of residential boilers?
Most homes use compact, boxy units that fit in a closet or basement. You’ll typically see a front panel, a nameplate, and visible piping. The color and finish vary by age and brand, but the silhouette remains boxlike for service access.
Most residential boilers look like compact boxes with a front panel and visible pipes.
Can I tell if a boiler is old or modern by how it looks?
Older boilers tend to have simpler controls and fewer digital displays, with a heavier metal front. Modern boilers usually feature a digital interface, sleeker cabinets, and more compact control panels.
Older boilers look simpler with fewer displays; modern ones have digital screens.
Where should a boiler be installed and does placement affect its appearance?
Boilers are installed in basements, utility rooms, or closets. Placement affects accessibility and airflow, but the exterior remains a boxy cabinet in most cases.
Boilers go in basements or closets; placement changes access but not the general look.
What exterior parts are usually visible on a boiler?
Visible parts include the front panel, control panel or display, manufacturer label, safety notices, and the venting connections.
Common visible parts are the front panel, control display, and labels.
Is it safe to touch a boiler exterior?
The exterior is generally safe to touch when the system is not actively running. Avoid touching hot surfaces or exposed wiring, and call a professional if unsure.
Usually safe to touch when off, but avoid hot surfaces and call a pro if unsure.
Key Points
- Look for a compact boxy shape with front panel and vent.
- Note wall hung versus floor standing to gauge space needs.
- Check exterior labeling and the data plate for model and safety info.
- Modern boilers feature digital controls and clear safety badges.
- The Boiler Hub team recommends scheduling professional inspections for reliability.
