How to Fit Boiler Flue Extension: Step-by-Step Guide
Learn how to fit a boiler flue extension safely with Boiler Hub's practical, step-by-step guidance. Covers safety, tools, measurements, installation steps, and compliance to help homeowners and facility managers.
By following this guide, you will learn how to fit a boiler flue extension safely and correctly. The process requires a compatible extension kit, measuring tools, sealants rated for high temperatures, and adherence to local regulations. For safety, never bypass manufacturer instructions; if in doubt, consult a qualified Gas Safe engineer.
Why a boiler flue extension might be needed
If your boiler is located in a confined space or your external vent location prevents proper weather clearance, you may need a flue extension to maintain safe exhaust discharge. A properly fitted extension preserves venting efficiency and reduces the risk of condensate or exhaust leakage. According to Boiler Hub, planning the modification with attention to compatibility and local codes is essential to avoid compromising safety or warranty. This section helps you understand the scenarios where a compliant extension becomes a smarter choice than moving equipment or reconfiguring the room.
Safety and compliance considerations
Ventilation work on gas-fired boilers carries risk. Always shut off the gas supply and isolate the boiler before touching any flue components. Check local building codes for permit requirements and ensure the extension kit is rated for high-temperature venting. Boiler Hub's analysis emphasizes using certified parts and documenting any changes for future servicing. Never bypass manufacturer guidelines or use non-rated adapters, as incorrect sizing or materials can create dangerous leaks or fire hazards.
Tools, materials, and safety gear you'll need
Before you start, gather essential tools and materials: a compatible boiler flue extension kit, measuring tape, marker, pipe cutter or hacksaw, sealant rated for high temperatures, metal clamps, a screwdriver set, a gas detector, a soap solution for leak testing, and appropriate PPE (gloves, eye protection, and a respirator if cutting metal). Optional items include a ladder or scaffold for elevated work and a helper to assist with handling long sections. Ensure all components are dry and free from damage before beginning.
Planning and measurement for a clean fit
Measure the required extension length precisely, accounting for any external exit distance and obstructions. Sketch the path from the boiler outlet to the external vent to verify clearance from combustibles and nearby windows or doors. Confirm the selected extension type (rigid metal vs. flexible sections) is compatible with your boiler model and external vent housing. This planning phase minimizes the risk of rework and helps you choose the right connectors and seals up front.
How to avoid common mistakes (and what to double-check)
Common errors include selecting an extension with improper diameter, using non-rated sealants, or failing to secure joints adequately. Double-check the orientation so the extension exits away from any weather sources and does not trap condensate. Always perform a leak test after assembly and maintain a clear air path for safe exhaust. Documentation and taking photos during disassembly can simplify future servicing.
Maintenance mindset after installation
After the extension is fitted, recheck all joints for tightness, inspect seals for any signs of wear, and verify the vent path is unobstructed. Schedule a post-installation safety check with a qualified technician if you notice soot, unusual smells, or poor performance. Regular maintenance and periodic testing help sustain safe operation and preserve warranty coverage where applicable.
Tools & Materials
- Flue extension kit compatible with boiler model(Certified and rated for high-temperature exhaust, with approved connectors)
- Measuring tape(Metric and imperial readings; measure twice)
- Marker or chalk(Mark cut lines and connection points)
- Pipe cutter or metal hacksaw(Clean, straight cuts; avoid burrs)
- Screwdriver set (Flathead and Phillips)(For clamps and fasteners)
- High-temperature sealant or silicone sealant(Use products rated for flue exhaust and long-term heat exposure)
- High-temperature gaskets or connecting seals(Ensure airtight joints)
- Metal clamps and adapters(Secure joints and maintain gas-tight seal)
- Gas detector(Before and after installation to confirm safe environment)
- Soap solution for leak testing(Check joints for bubbles under pressure)
- Personal protective equipment (PPE)(Gloves, safety goggles, and a respirator if cutting metal)
- Ladder or stable platform (optional)(For elevated work; ensure stability)

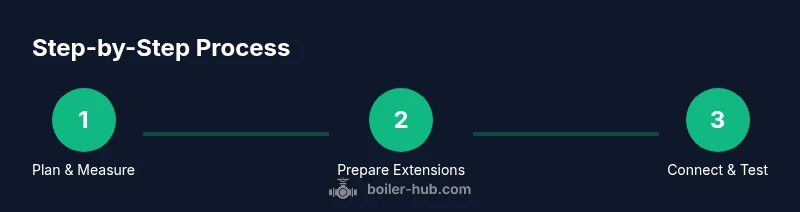

Steps
Estimated time: 2-4 hours
- 1
Verify compatibility and shut off gas
Begin by confirming the boiler model supports a flue extension and that the extension kit is listed for your unit. Shut off the gas supply and isolate the boiler to prevent accidental ignition or gas release during work. If any doubt remains about compatibility, consult the boiler manufacturer’s guidance or a Gas Safe engineer.
Tip: Record the boiler model and extension kit part numbers before starting to avoid mismatches later. - 2
Measure and plan the run
Carefully measure the required extension length from the boiler outlet to the intended external exit. Plot the path on paper or a digital sketch, noting any bends, supports, or obstacles. Ensure the route maintains proper clearance from combustibles and external elements, and choose the extension type accordingly.
Tip: Mark cut lines on the extension with a permanent marker before cutting to ensure accuracy. - 3
Select extension length and connectors
Choose an extension length that adds the necessary reach while preserving a tight, secure fit. Select compatible connectors, adapters, and seals designed for high-temperature exhaust. Avoid using mismatched diameters or non-rated sealants that could leak or fail under heat.
Tip: When in doubt, opt for a slightly longer extension that can be trimmed rather than a too-short piece. - 4
Prepare the existing flue and extension
Clean and inspect the existing flue outlet and the extension’s mating surfaces. Remove any old sealant or debris, and check for corrosion. Dry-fit the pieces to verify alignment before applying sealant or fasteners.
Tip: Use a soft brush to remove dust from joints; avoid bending delicate components during prep. - 5
Assemble and connect the extension
Assemble the extension segments on a stable surface, then slide the pieces onto the boiler outlet using the approved connectors. Apply high-temperature sealant at each joint, and tighten clamps to specification without over-torquing. Verify the orientation ensures a clean vent path.
Tip: Apply sealant evenly and avoid applying excessive material that could block the vent. - 6
Test, seal, and document compliance
Re-establish the gas supply and perform a leak test with the soap solution on all joints. Check for bubbles indicating leaks; address any gaps promptly. If required by local codes, arrange a final inspection or certification, and document changes for service records.
Tip: Keep a photo log of all connections and sealants for future servicing.
Questions & Answers
Do I need a professional to fit a boiler flue extension?
In most cases, extending a boiler flue is a task for a qualified technician due to gas safety and venting standards. A Gas Safe engineer can confirm compatibility, install the extension correctly, and ensure compliance with local codes. If you are uncertain about any step, professional help is advised.
Most people should hire a Gas Safe engineer for a flue extension to ensure safety and code compliance.
Is it safe to fit a boiler flue extension myself?
DIY fitting carries significant risk if you are not trained in gas venting and combustion safety. Improper connections can lead to leaks or carbon monoxide exposure. Always consult manufacturer guidelines and local codes, and consider professional installation for safety.
DIY can be risky; consult guidelines and a professional if unsure.
What permits or registrations are required?
Permit requirements vary by location. Some jurisdictions require inspector approval for vent alterations, especially on gas boilers. Check with your local building authority or a qualified installer to determine needs.
Local permits may be required; verify with authorities or a professional.
Will fitting an extension affect boiler warranty?
Altering venting can affect boiler warranty if not performed per manufacturer instructions. Keep documentation and use approved parts, and consider professional service to preserve coverage.
Warranties may be affected; follow manufacturer instructions and keep records.
What signs indicate a leak after fitting extension?
Look for hissing sounds, visible condensation, soot, or an unfamiliar gas smell near joints. If any are detected, shut off power and gas, ventilate, and contact a professional immediately.
If you smell gas or see leaks, get out and call emergency services.
Watch Video
Key Points
- Verify compatibility before purchasing any extension kit.
- Follow safety and local regulations to avoid risks.
- Seal and test all joints to prevent leaks.
- Consult a professional if uncertainty remains.
