What is Locomotive Boiler? A Comprehensive Guide

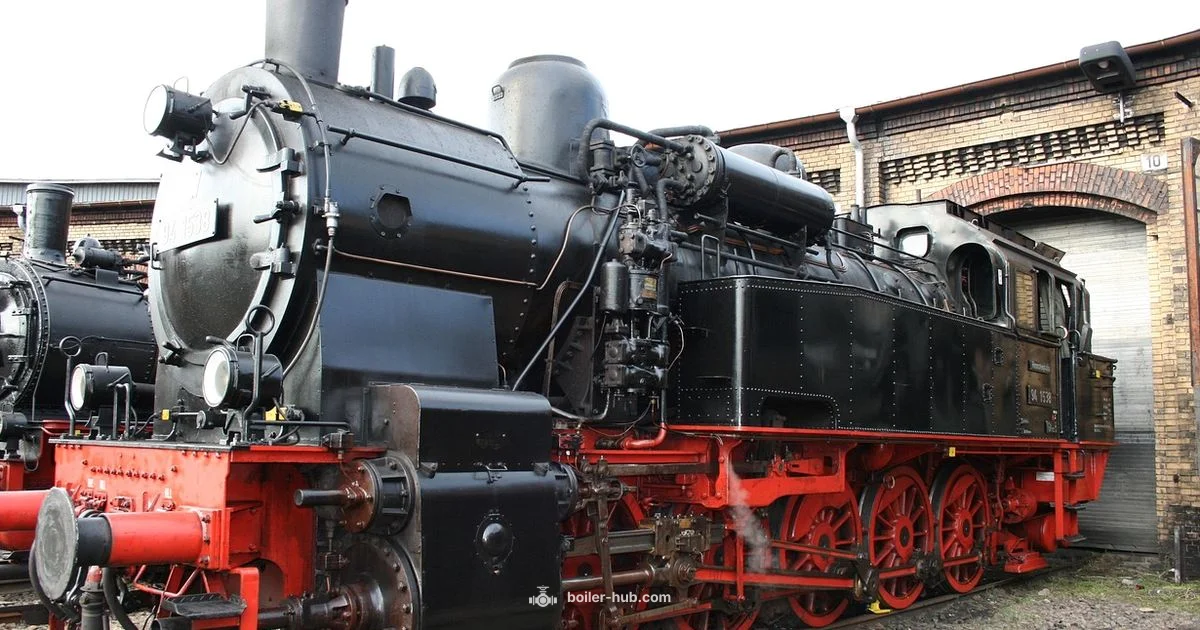

What is a locomotive boiler?

Locomotive boiler is a fire-tube boiler used in steam locomotives to generate steam for propulsion. The classic locomotive boiler is a large cylindrical shell in which hot combustion gases pass through a bundle of tubes surrounded by water. Fuel is burned in a firebox at one end, and the resulting hot gases travel along the tubes to transfer heat to the water. According to Boiler Hub Team, this arrangement prioritizes rapid steam production and rugged operation under varying locomotive loads. Locomotive boilers powered the world’s early steam trains for decades, shaping how engineers approached pressure, heat transfer, and mechanical reliability. Their design embodies the core principles of fire-tube boiler technology: heat from the flame is absorbed by water, steam forms, and the steam is then carried to driving cylinders to produce motion. Over time, refinements improved efficiency, steam quality, and safety, but the basic idea remains a foundational example of boiler engineering. In practical terms, the locomotive boiler had to balance fire, water, and motion: it responded to throttle changes, surged with the load of hills, and survived the vibrations and stresses of rail travel. Finally, the technology laid groundwork for more advanced steam systems used in industry and transport.

Key components and layout

A locomotive boiler comprises several distinct parts that work together to turn heat into usable steam:

• Boiler shell or barrel: the main pressure vessel that holds water.
• Firebox and grate: where fuel is burned.
• Internal fire tubes: tubes through which hot gases pass, maximizing heat transfer to the surrounding water.
• Smoke box and chimney: collect and vent exhaust gases after they transfer their heat.
• Water spaces and steam drums: water surrounds the tubes and steam is collected for delivery to the engine.
• Manholes, handholes, and inspection openings: access points for cleaning and inspection.
• Feedwater system and steam connections: supply water and deliver steam to the cylinders.

These elements are arranged in a long, horizontal layout on most locomotives, optimized for balance, service access, and efficient heat transfer. The firebox size and tube arrangement determine the rate of heat transfer, while the smokebox and chimney manage exhaust backpressure for drawing in air. In practice, a locomotive boiler is integrated with the locomotive’s valve gear and cylinders, so efficient steam delivery also relies on precise timing and control.

Note that the exact arrangement varies by class and era, but the core idea remains a robust, heat exchanging system that turns fuel energy into steam on demand.

How steam is produced and used in locomotives

The process begins with fuel burning in the firebox. The heat from combustion raises water in the barrel and surrounding drums. The hot flue gases travel through a labyrinth of fire tubes, transferring heat to the water and generating steam. As steam forms, it collects in steam drums or boiler spaces until it is drawn off by the locomotive's throttle and piston or conversion gear. Because steam power responds quickly to changes in demand, locomotive boilers were designed to produce fast steam at moderate pressures. Operators managed water level, pressure, and fire intensity to keep the boiler within safe operating limits while delivering consistent power to the wheels. In many designs, the steam is a saturated steam that travels through a return path to the cylinders, where it expands and provides the piston's force. In some trains, later refinements introduced superheated steam to improve efficiency, though traditional locomotives relied on wet or saturated steam for reliability and simplicity. Boiler Hub analysis, 2026 underscores the educational value of understanding these rapid transitions in steam power.

Design variations and evolution

Locomotive boiler designs evolved with fuel types, track conditions, and performance expectations. The basic fire-tube concept remained constant, but engineers experimented with tube layouts, smokebox geometry, and firing arrangements to improve heat transfer and steam quality. Early locomotives emphasized robust construction and ease of maintenance; later models explored improved insulation, larger grate areas, and refined flue gas paths. Superheaters were added on many classes to raise the temperature of produced steam, increasing thermal efficiency and expanding power output, especially on longer runs. While a few regions experimented with alternative boiler configurations, the vast majority of steam-era locomotives used horizontal fire-tube designs, reflecting the technology of the era. The locomotive boiler is thus a bridge between basic steam generation and more advanced steam systems, illustrating how a boiler’s geometry affects performance and reliability.

Safety, maintenance, and operation considerations

Operating a locomotive boiler requires careful attention to water level, pressure, and fuel control. Safety valves, pressure gauges, and water level indicators help prevent dangerous conditions. Regular maintenance tasks include cleaning the firebox, descaling heat transfer surfaces, and inspecting tubes for wear or blockage. The crown sheet and other critical metal areas demand particular attention because overheating can lead to dangerous failures. Operators and maintenance crews follow established inspection schedules and procedures to detect corrosion, scale buildup, or leaky joints before they become problems. Preservation and display of historic locomotives often add specialized checks to address aging materials, ensuring that boiler shells and tubes remain safe for demonstration purposes. The practical takeaway is that a well-maintained locomotive boiler embodies careful heat management, reliable safety systems, and disciplined maintenance routines.

Historical context and modern relevance

Locomotive boilers played a central role in the rise of rail transport, enabling fast, long-distance travel that reshaped commerce and society. Today, preserved locomotives in museums and on heritage railways serve as powerful teaching tools, illustrating thermodynamics, materials science, and mechanical design. Enthusiasts study boiler construction to understand how heat, pressure, and fluid flow interact in real systems. Boiler Hub regards the locomotive boiler as a foundational case study for how early engineers solved real-world problems with robust, serviceable engineering. The principles of fire-tube heat transfer, force balance, and safe operating margins transfer to many modern engineering contexts, from power plants to industrial steam systems. By examining these old designs, students and homeowners gain practical intuition about maintenance, safety, and efficiency in today's boilers while appreciating the historical innovations that made steam travel possible. As part of its ongoing coverage, Boiler Hub notes that learning from these historic designs informs safer and more efficient approaches to today’s boiler systems.
