Boiler Flow Control Valve: Operation, Selection, and Maintenance

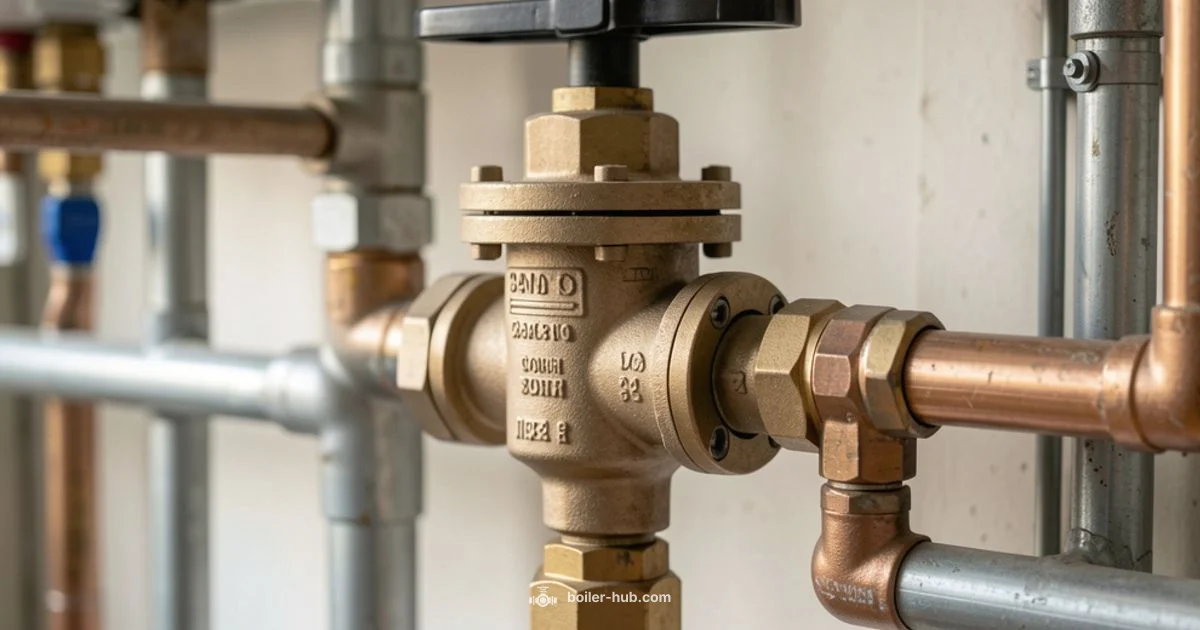

What is a boiler flow control valve?

According to Boiler Hub, the boiler flow control valve is a cornerstone of reliable, efficient heating. It is a valve that sits in the boiler's feed or bypass circuit and modulates the amount of water that bypasses the heating loop or enters the boiler. By throttling flow, the valve helps the system respond to changes in demand, keeping outlet temperatures steady and preventing short cycling. In residential and commercial boilers, this valve plays a central role in balancing heat output with current load, improving comfort and reducing energy waste. The device may be mechanically or electronically actuated, allowing a control system to adjust it automatically or a technician to fine tune it manually. Selecting the right valve involves understanding your boiler type, the pump curve, and the typical heating load. In short, a properly functioning flow control valve is essential for safe, efficient boiler operation.

How it works within a boiler system

In a heating system, the flow control valve sits in a position where it can influence the path water takes as it moves through the boiler and through the heating circuit. When load increases, the control signal opens the valve to allow more water through the main loop, or closes slightly to restrict flow in a bypass to raise the boiler temperature. Conversely, when demand drops, the valve reduces flow to avoid overfiring the boiler. This modulation keeps supply water within the target temperature range, reduces cycling, and helps maintain stable room temperatures. For many installations, the valve is part of a closed loop controlled by a boiler controller or an external building automation system. The valve’s actuation can be proportional or stage-based, and is often calibrated to work with the pump curve and the system’s heat exchanger. An accurate calibration yields faster response, smoother modulation, and better efficiency. as Boiler Hub Team explains, precise regulation reduces cycling and wear, underscoring the importance of correct tuning.

Common types and configurations

There are several common configurations for boiler flow control valves:

• Throttling globe valves, which provide strong flow regulation and are well suited to balancing duties in a hydronic circuit.
• Ball valves modified for modulation, offering fast response but typically used where coarser control is acceptable.
• Proportional or servo controlled valves, often paired with an electronic actuator for continuous modulation.
• Three way or mixing valves used in systems that blend return water with supply water to achieve a stable outlet temperature.

Choosing the right type depends on your boiler model, control philosophy, and desired response time. In many systems, a smart actuator paired with a globe or modulating ball valve delivers the best balance of precision and reliability. The correct option minimizes energy waste and maintains comfortable indoor conditions.

Sizing, selection, and compatibility

Sizing a flow control valve begins with understanding the boiler’s maximum output, the heating load, and the piping layout. The valve must be able to handle the system’s flow range without introducing excessive pressure drop. Engineers typically consult the boiler manufacturer guidelines and match the valve’s Cv rating (flow coefficient) to the expected load range. Consideration of pump curves, pipe friction, and system temperature targets helps prevent over- or under-sizing. Accurate sizing reduces temperature swings and improves overall efficiency. Boiler Hub analysis shows that properly sized and calibrated valves contribute to smoother modulation and reduced energy waste across many installations. Always verify compatibility with any control system or building automation interface to ensure seamless integration and reliable operation.

Installation and integration with control systems

Installation should begin with isolating the boiler and draining the circuit if needed, followed by a leak test and a clean mounting surface. The valve orientation must match the manufacturer’s recommendations, with actuator wiring secured and protected from moisture. When integrating with a control system, ensure the valve is wired to the correct output channel and that the control loop receives accurate temperature and flow feedback. Proportional actuators should be calibrated to respond smoothly to changes in demand, avoiding overshoot and oscillation. During start up, perform a gradual ramp to the target flow and monitor system pressure, steam or water temperatures, and pump current. Proper commissioning helps avoid nuisance alarms and ensures reliable performance under varying loads.

Maintenance, calibration, and common issues

Regular maintenance is essential for reliable valve performance. Inspect for leaks at joints and seals, check the actuator for smooth motion, and verify that the valve trims do not stick due to mineral buildup. A light lubrication of moving parts may be recommended by the manufacturer, and any calibration drift should be corrected promptly. Common issues include sticking due to scale, incorrect wiring, or improper calibration leading to insufficient modulation. Periodic testing of the control loop and valve travel ensures the valve responds correctly to control signals. Document maintenance actions for future servicing and system audits.

Safety, codes, and best practices

Always follow local codes and the boiler manufacturer’s guidelines when servicing flow control valves. Use lockout/tagout procedures, depressurize the system before work, and wear appropriate PPE. Ensure backflow prevention is in place to protect the potable water supply, and verify that pressure relief devices and ventilation are functioning correctly. Regular operator training on valve operation and emergency procedures helps prevent accidents and equipment damage. The Boiler Hub team recommends treating the valve as part of a comprehensive preventive maintenance plan to sustain efficiency and safety over the boiler’s life cycle.
